Assembly guide for Oxford 3 furniture, listing tools needed: Phillips screwdriver and optional hex wrench, with a photo of the assembled furniture piece.

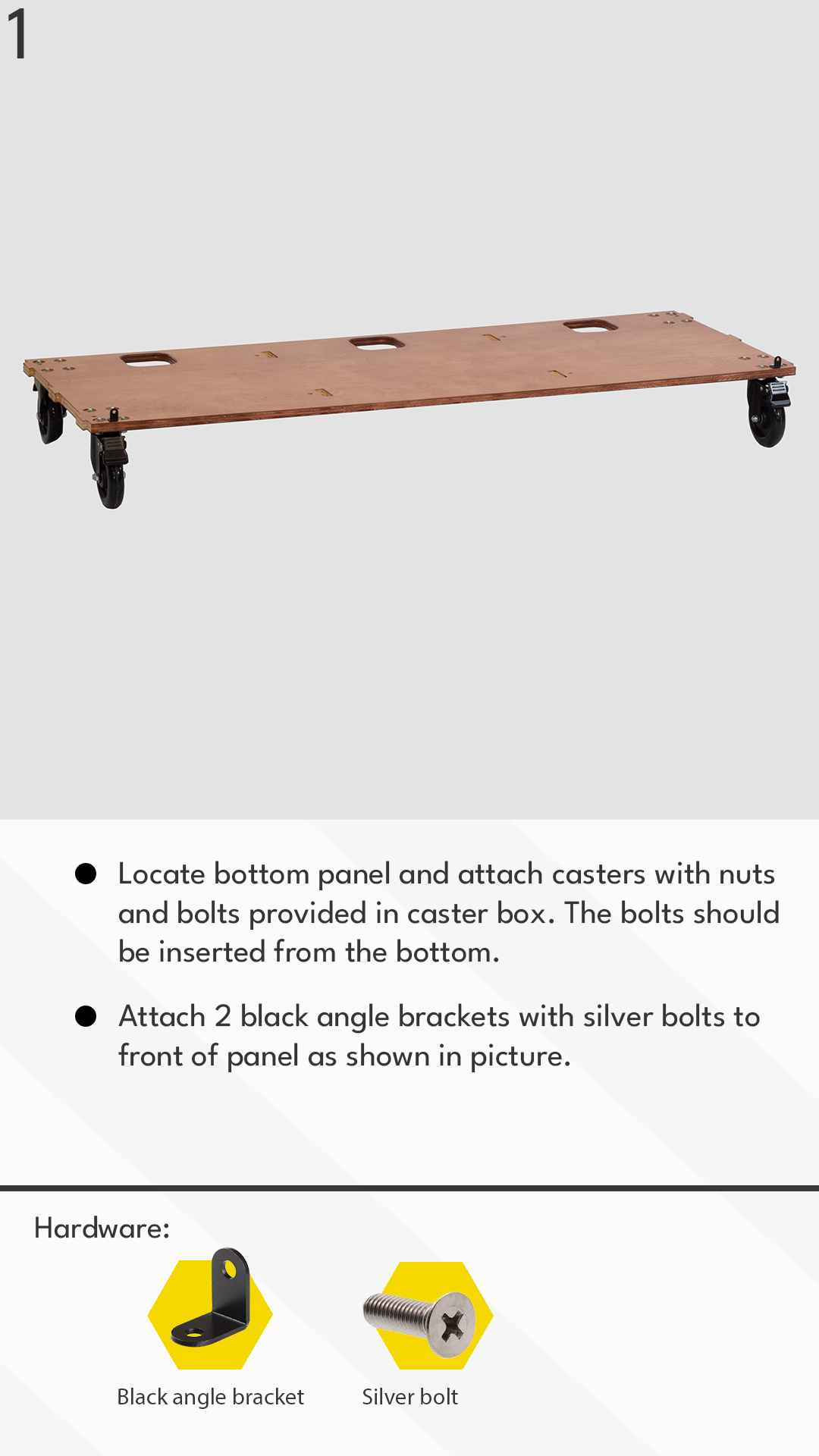

A mobile platform with caster wheels, instructions for attaching casters and brackets, and images of a black angle bracket and a silver bolt.
A wooden flatbed with four caster wheels and two handles, intended to be attached to a stretcher using two silver bolts. The image includes instructions for assembly and a close-up of the hardware, which is a silver bolt with a yellow background.
A wooden panel with black angle brackets attached using silver bolts, and rack rails to be attached with black wood screws, instructions for mounting hardware included.
Step-by-step instructions for attaching black angle brackets with silver bolts to a wooden panel, including hardware details of black wood screws, black angle brackets, and silver bolts.
A wooden rolling platform with a vertical panel attached to the base, which has four casters. The image shows instructions to attach the middle left panel using three silver bolts, with two bolts going into the bottom panel and one into the front str
Wooden right panel with black angle brackets, silver bolts, and rack rails with black wood screws for assembly.
Disassembled wooden desk panel with black metal brackets and silver screws, instructions for assembly, and hardware including a black wood screw, a black angle bracket, and a silver bolt.
A wooden rolling cart with two movable vertical panels and instructions for attaching the middle right panel with three silver bolts, with an illustration of a silver bolt.
A wooden board with a square hole and four notches along the edges, used for assembly or shelving.
Wooden mobile cart or stand with caster wheels, with a middle shelf that needs to be attached using four silver bolts.
A wooden panel with seven black angle brackets, silver bolts, and rack rails for assembly, with a hardware guide showing black wood screws, black angle brackets, and silver bolts.
A wooden rolling cart with multiple panels, designed for assembly using silver bolts. Instructions indicate attaching the right panel with three bolts, with two bolts attaching the bottom panel and one to the front stretcher.
A wooden piece with a large square cutout at the top, likely part of furniture assembly, against a light gray background. The number 13 is in the top left corner.
A wooden rolling cart with two levels and adjustable side panels, designed to hold a shelf. The cart has four caster wheels for mobility. The instruction indicates attaching a right-side shelf with four silver bolts, with a diagram of a silver bolt s
A wooden wall panel with black and silver hardware for assembling a rack, including black angle brackets, silver bolts, and black wood screws.
A wooden rolling cart with adjustable sides and a middle shelf, used for holding panels, on a light gray background with instructions for attaching the side panels using silver bolts.
A wooden shelf with a square cutout and pegged sides, against a light grey background. Instruction text below the shelf indicates locating the right shelf for assembly.
A wooden rolling cart with vertical panels and multiple shelves, partially assembled. Text instructs to attach the left shelf with four silver bolts, and a graphic shows a silver bolt as hardware.
Wooden cart with wheels, open compartments, and outlets, used for assembling or moving parts. Text indicates attaching a top panel with 8 silver bolts.
