Assembly guide for a 12U QRATAL audio equipment rack, showing a partially assembled wooden frame with shelves, along with a list of tools needed and contact information for Gear Hive.
Top view of a wooden rack piece with four black metal corner brackets. Instructions for attaching hairpin legs with screws, either black wood or silver wood, are displayed below.
Flat wooden piece with black rack rails attached at an angle, with black angle brackets and silver bolts, instructions for assembly below.
A wooden piece with black angle brackets and silver bolts, used to attach rack rails, as part of assembly instructions for a rack or shelving unit.
A wooden board with multiple holes, ready for hardware attachment, shown with black angle brackets and silver bolts as example hardware.
Wooden frame for a stretcher with attached black metal rails on the sides, instructions for assembly, and a silver bolt as hardware.
A light-colored wooden structure with black metal support brackets and hairpin legs, designed for assembly, possibly a small table or shelf.
Unassembled wooden rack with black metal support strips and black metal legs on a light grey background.
A wooden craft rack with a dark wood top, light wood sides, black metal support strips, and black hairpin legs, with instructions to attach the top using silver bolts, and a graphic showing a silver bolt with a yellow hexagon background.
Inside of a wooden cabinet showing two black angle brackets attached with silver bolts, circled in red, on the back bottom corners to connect the bottom piece to the front stretcher. Hardware illustrations at the bottom show a black angle bracket and

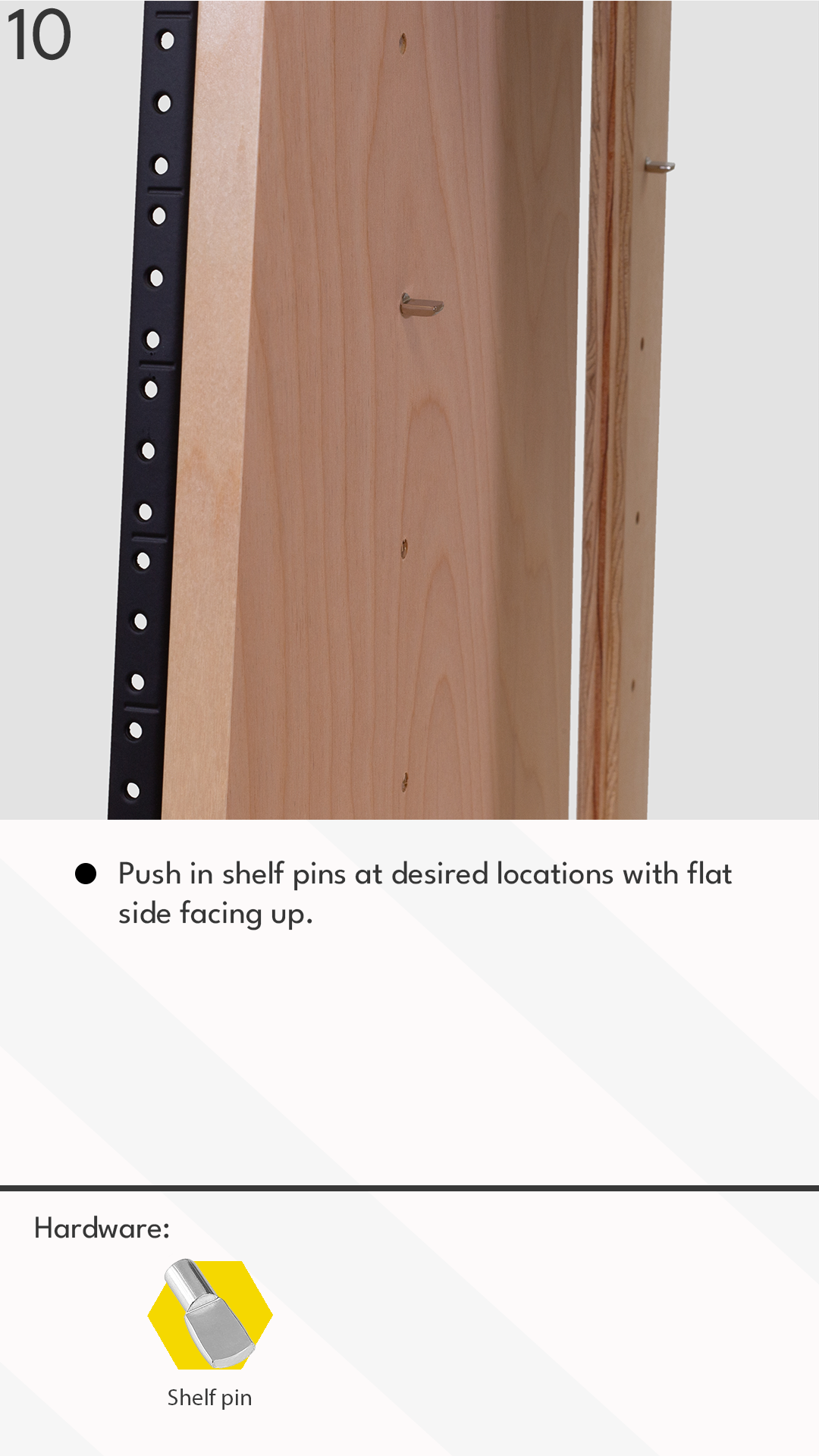

Close-up of a wooden shelf with black metal brackets, showing instructions to push shelf pins at desired locations with flat side facing up, and an illustration of a shelf pin hardware.
A wooden cabinet with open shelves and cable access holes, designed for and partially assembled on a flat surface.
