Assembly guide for Tamagotchi with tools needed and company logo, showing a partially assembled wooden desk with black metal legs.
Three black metal desk frame pieces arranged horizontally on a light gray background, used for assembly.

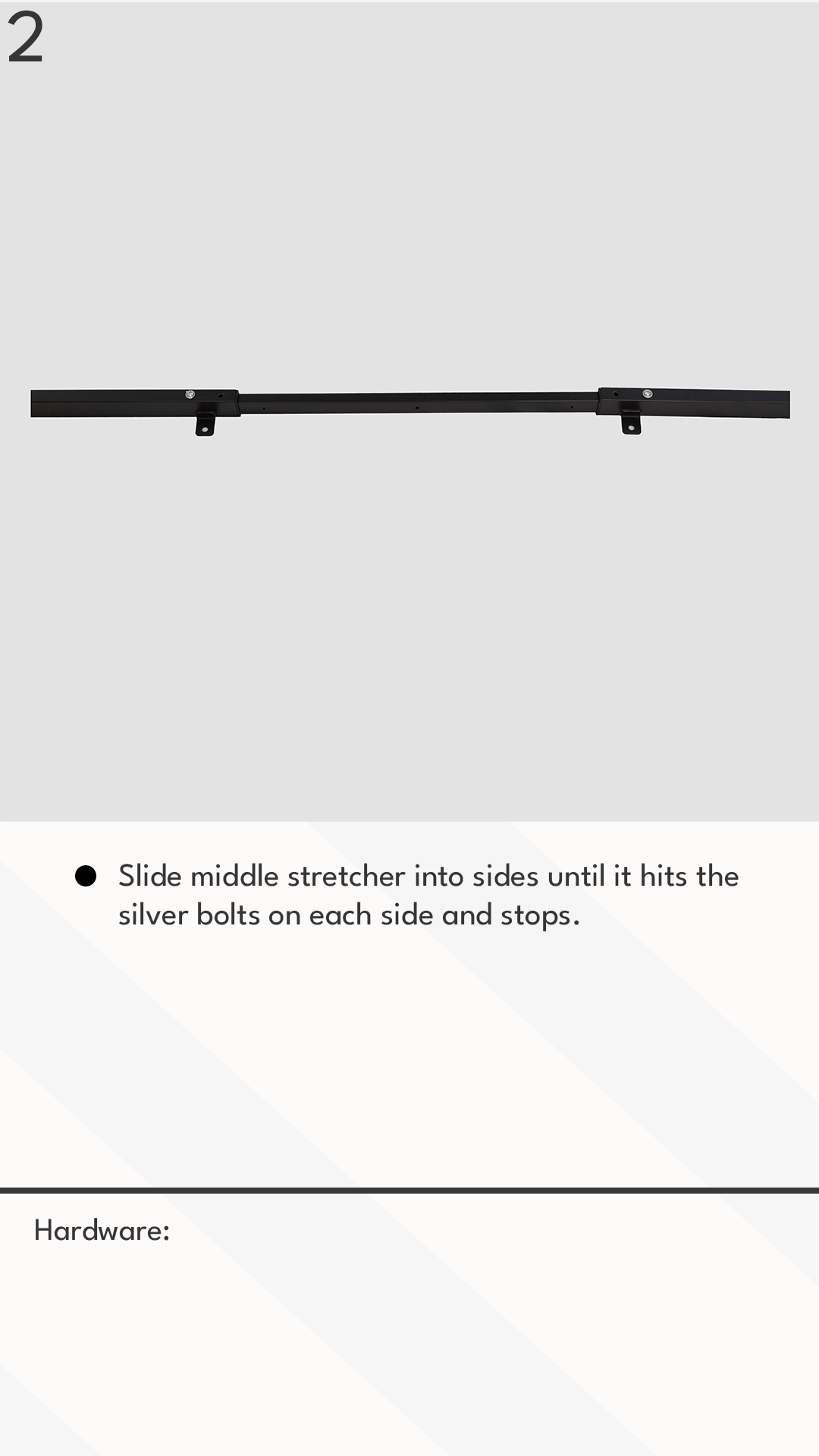

Image of a black slide middle stretcher with silver bolts, shown on a light gray background, with instructions to slide it into sides until it hits the bolts and stops.
A black metal rail with two red-circled bolts, instruction to tighten neighboring bolts to secure it in place, and a section labeled 'Hardware:'
A pair of black metal sliding door hardware tracks on a light gray background with instructions for assembly.
An assembly guide image showing a black metal motorized stand with its left leg, a power supply, and a yellow hexagonal hardware icon with a silver screw. Instructions indicate attaching the left motorized leg with 4 silver bolts, 2 on each side from
A black metal table leg being assembled with four silver bolts and hardware including a silver bolt
A black, metal, rectangular frame structure is being assembled, with instructions to repeat steps 5 and 6 for the right leg. The hardware listed includes a silver bolt.
Diagram of a flip desk frame with an instruction to flip it right-side-up and place a desktop on top, noting four pockets on the underside that face forward.
Close-up of a desk frame showing two black metal brackets attached to a wooden surface with four silver bolts, two on each bracket, highlighted with red circles; instructions for assembly are included along with an illustration of a silver bolt.
Instructions for assembling wooden rack pieces with black wood screws, silver bolts, and black angle brackets, showing two wooden pieces with hardware icons labeled for hardware components.
A partially assembled computer desk with black metal legs and a wooden tabletop. The side pieces are to be attached using silver bolts.
Close-up of a piece of a wooden desk with black bolts on the side, attached to a black metal leg, with text instructions and an illustration of a black bolt for assembly.
Close-up of a wooden desk corner with a black metal bracket and a silver bolt circled in red, illustrating how to loosen it.
A wooden and metal futon frame with instructions for adding a back stretcher with pockets facing up, attaching with silver bolts. An illustration of a silver bolt labeled "Hardware" is shown.
A wooden angled piece of hardware with black wood screws, black angle brackets, and silver bolts for assembly, with instructions for attaching rack rails and mounting brackets.
A wooden piece with a black metal strip attached, instructions to flip and attach rack rails using black wood screws, and an illustration of a black wood screw labeled as hardware.
A wooden and metal back stretcher with middle pieces attached by silver bolts, on a gray background.
A wooden desk with black metal legs and a monitor bridge in the middle, instructions to attach the monitor bridge using eight silver bolts, with one silver bolt shown at the bottom.
Image showing an assembly instruction for attaching a cable management clip under a wooden desk using black wood screws, with a close-up of the desk edge and hardware piece.

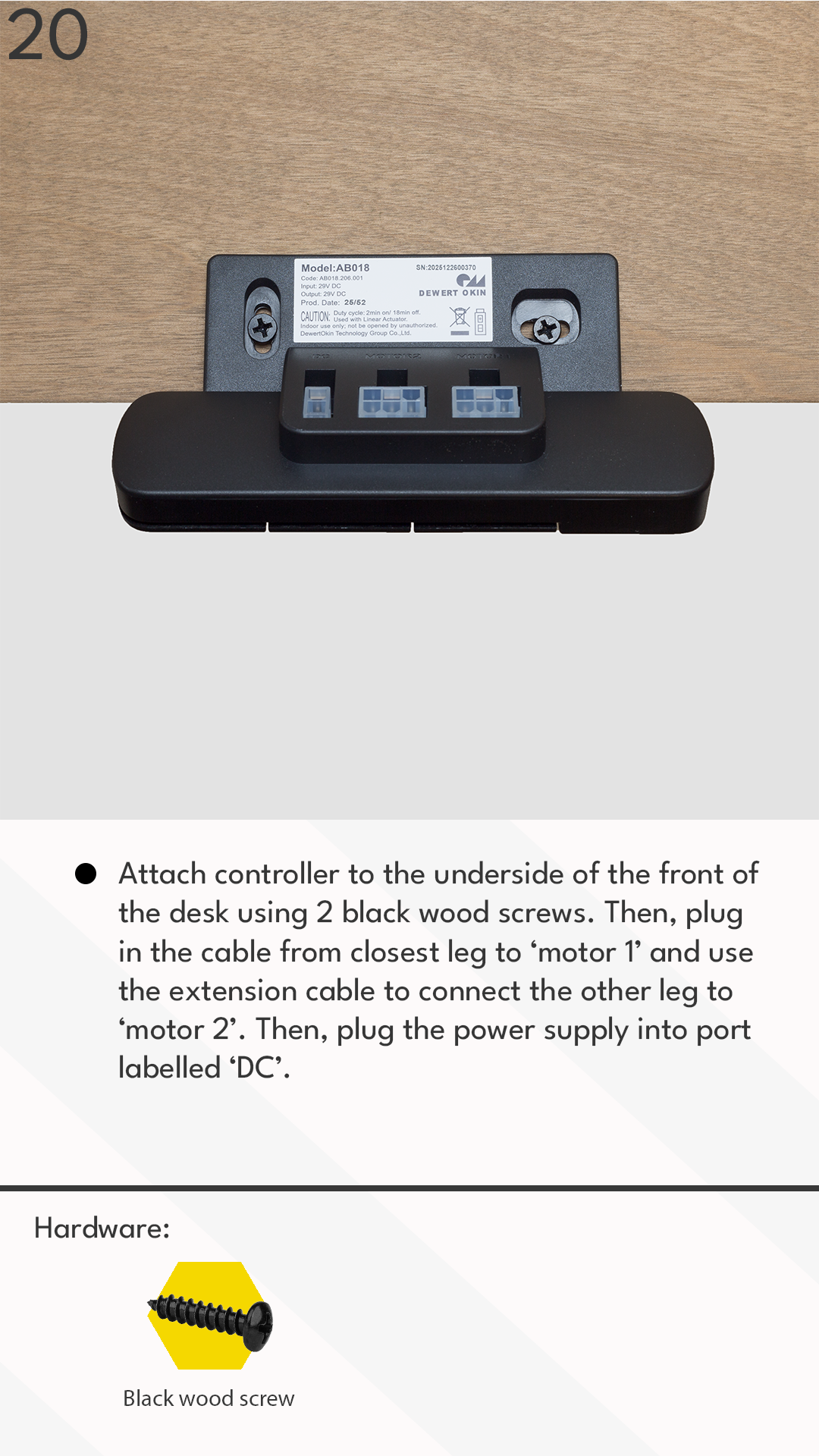

An instruction sheet showing a black controller with three connection ports placed on a light-colored desk. Text details how to attach the controller using screws and connect it to motors and a power supply. A small image of a black wood screw labele
Two wooden desk keyboard tray supports with adjustable black angle brackets and silver bolts, shown with different orientations for attaching to a desk.
A wooden standing desk with black metal legs, assembly instructions overlay, and hardware details for attaching parts.
A wooden standing desk with black metal legs, a raised shelf with a keyboard tray clip, and instructions for assembling a keyboard tray.

Using the controller

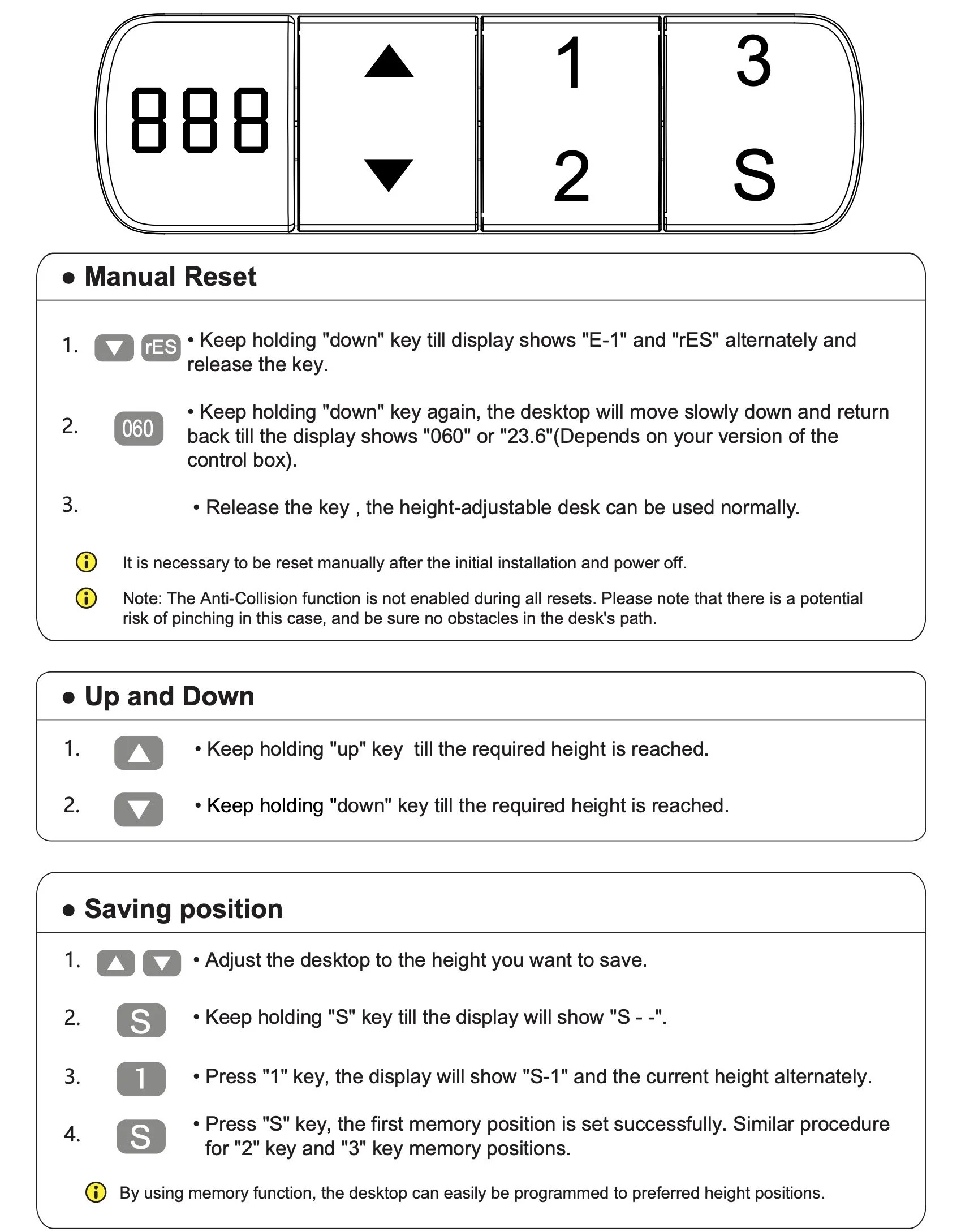

Control panel with buttons and instructions for manual reset, up and down adjustments, saving position, and changing height settings.

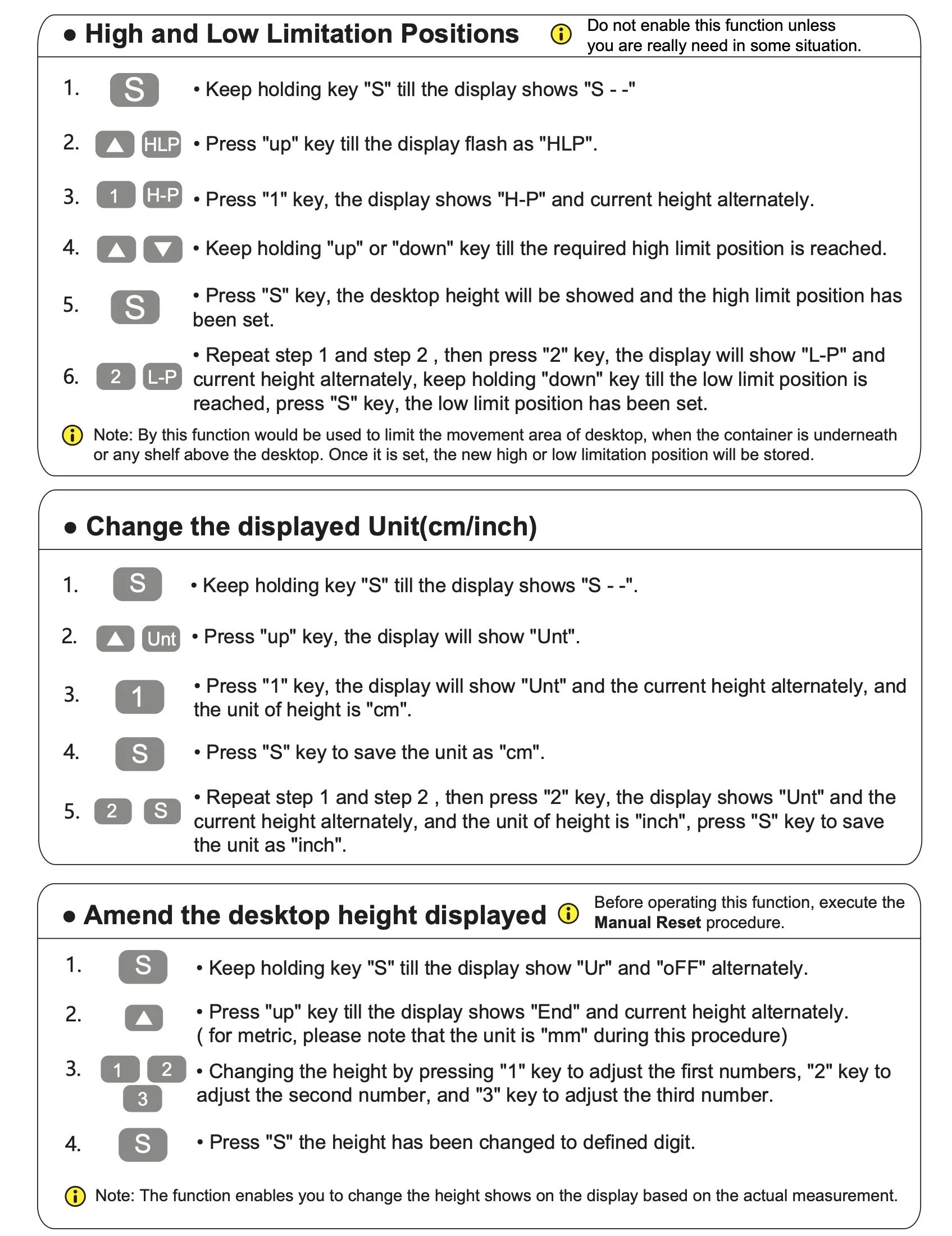

Instruction manual page listing steps for adjusting high and low limit positions, changing displayed units, and modifying height measurements with button icons and descriptions.

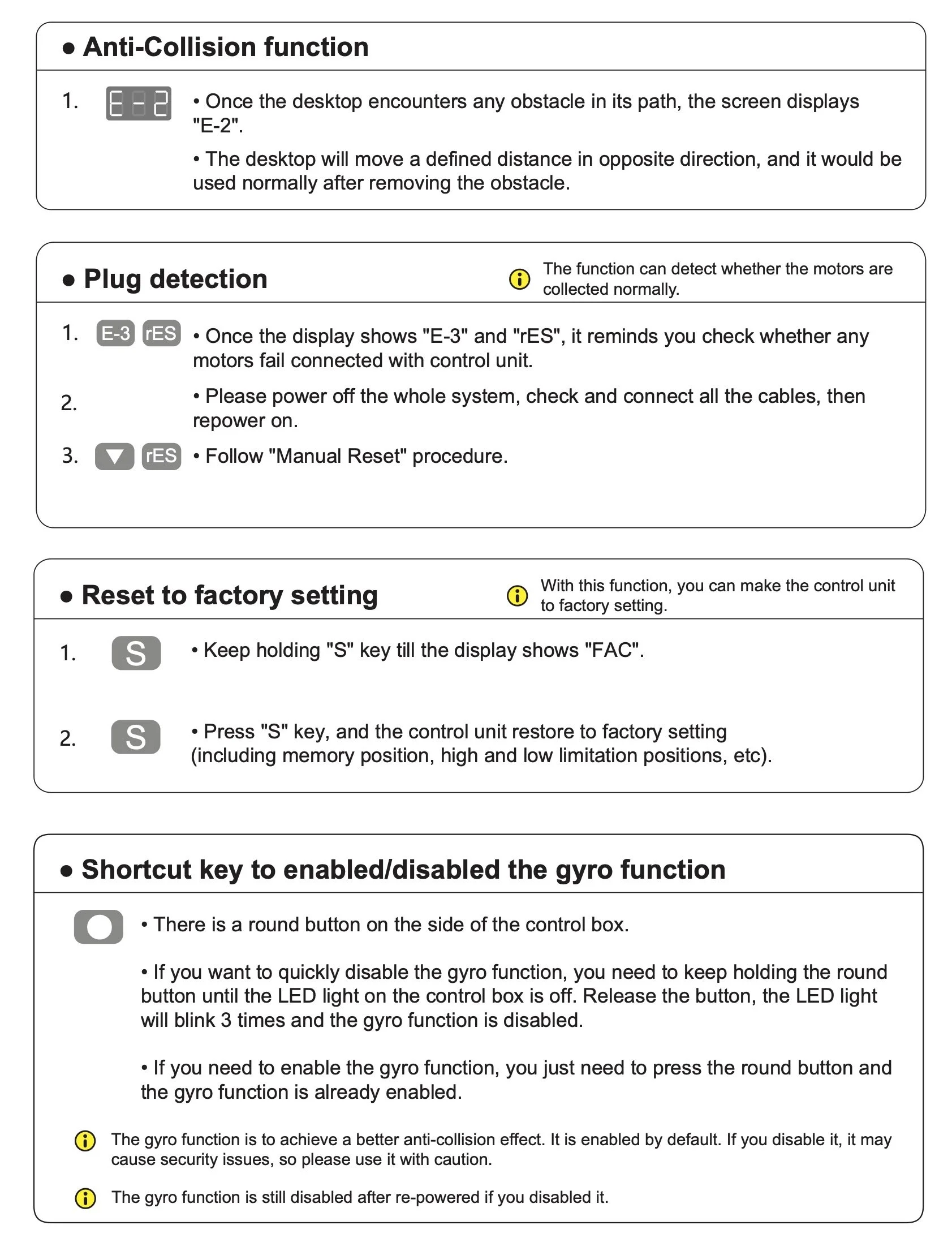

Instructions from a manual page explaining features of a control system, including sections on anti-collision function, plug detection, reset to factory setting, and gyro function, with icons and step-by-step guidance.

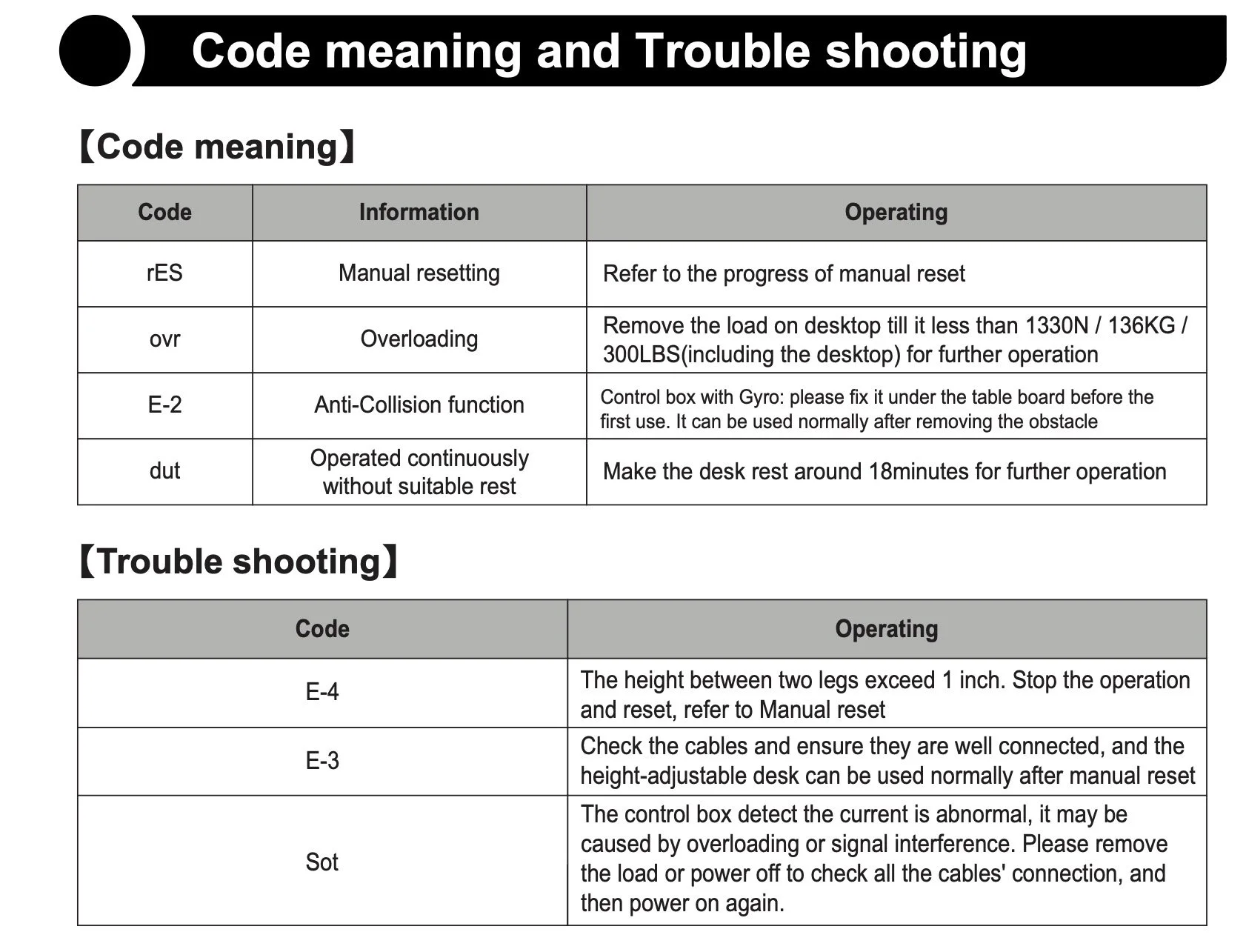

A troubleshooting guide with a title 'Code meaning and Trouble shooting' and sections explaining various codes, their meanings, and operating instructions. The first section details codes for manual resetting, overloading, anti-collision functions, a
